Demonstration Machines for Sale

Are you planning an investment to replace a machine or expand your fleet of machines?

Various machining centers and milling/drilling machines are used in our showroom for demonstrations and testing. We will be replacing several of these machines soon and are, therefore, pleased to offer them for sale to our customers.

You can benefit now from short delivery times, full functionality and top performance, as well as interesting prices.

Please ask us now for a non-binding offer or schedule a demonstration in our showroom.
We would be pleased to advise you in person about the details of these alternatives, as well as other machining solutions.

Interested? Feel free to contact us.







5-axis machining center VERSA 745 with rack magazine and automation

- Travel: X 500mm, Y 650mm, Z 420mm
   A 255°, C 360° endlessly turning
- HSK-A63 motor spindle, 24,000 rpm
- Cooling through spindle emulsion/air
- Heidenhain TNC 640 with 24" touch screen
- Dynamic collision monitoring
- Rotary swiveling table with integrated Erowa quick chuck UPC
- Coolant equipment 1400l with 80 bar high pressure pump
- Chip conveyor
- Enhanced energy-saving functions
- Emulsion mist absorber
- 3D touch probe
- Blum laser LC50-Digilog
- Electro-spindle 80,000 rpm, for use in main spindle
- Rack magazine for 128 tools, with automatic tool cleaning
- Erowa automation ERE for UPC pallets
- Fehlmann Milling Center Manager

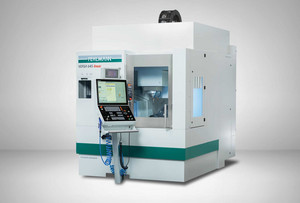

5-axis machining center VERSA 645 linear with grinding package

- Travel X 350mm, Y 500mm, Z 320mm
    A 255°, C 360° endless rotating
- HSK-E50, 30,000 rpm
- Chain magazine with 86 pockets
- Heidenhain TNC 640 with 24" touch screen (ext. workspace)
- Coolant system with 80 bar high pressure pump
- Chuck and preparation for EROWA automation
- Grinding package
- Electro-spindle with 80,000 rpm, for use in main spindle







Interested? Feel free to contact us.

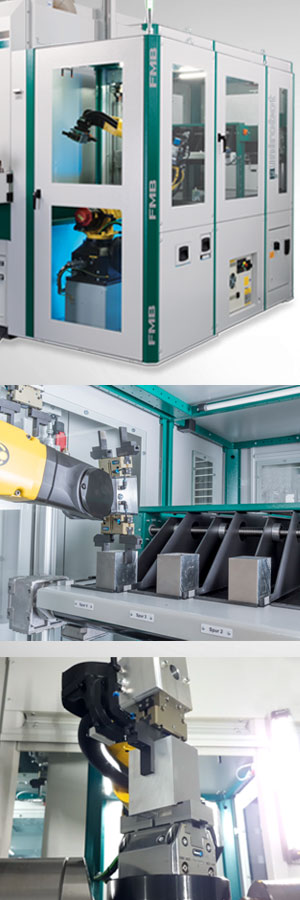

6-axis robot system for robot-assisted parts handling

Fits for VERSA and PICOMAX machining centers



- Manipulator - FANUC M-10i A/12
- Max. Payload 12 kg
- Max. working radius 1420 mm
- Repeatability ±0,08 mm
- Robot controller - FANUC R-30iB Mate
- Teach pendant - FANUC TeachPendant
- FANUC - Software extensions
- Collision Guard
- FANUC DCS Dual Check Safety
   for safe restriction of robot workspace
- Stable steel profile welded construction
- Protective cladding made of sheet steel
   with pane inserts made of ESG
- 3 doors for robot maintenance
- 1 door for loading and unloading conveyor belts
- Integrated lighting

- Conveyor belt system
- Conveyor belt for unmachined parts
   4 infinitely adjustable tracks
- from 0 to 150 mm width
- Workpiece height max. 115 mm
- Load capacity max. 200 kg
- Conveyor belt finished parts
- Max. load 200 kg

- Quick change head to accommodate gripper system
- Two-jaw double gripper system with blow-off device
- Workpiece scanning via light barrier
- Measuring part drawer
- Blow-off box cleans finished parts via two air knives
- Turning station for turning and reinserting workpiece



Interested? Feel free to contact us.
